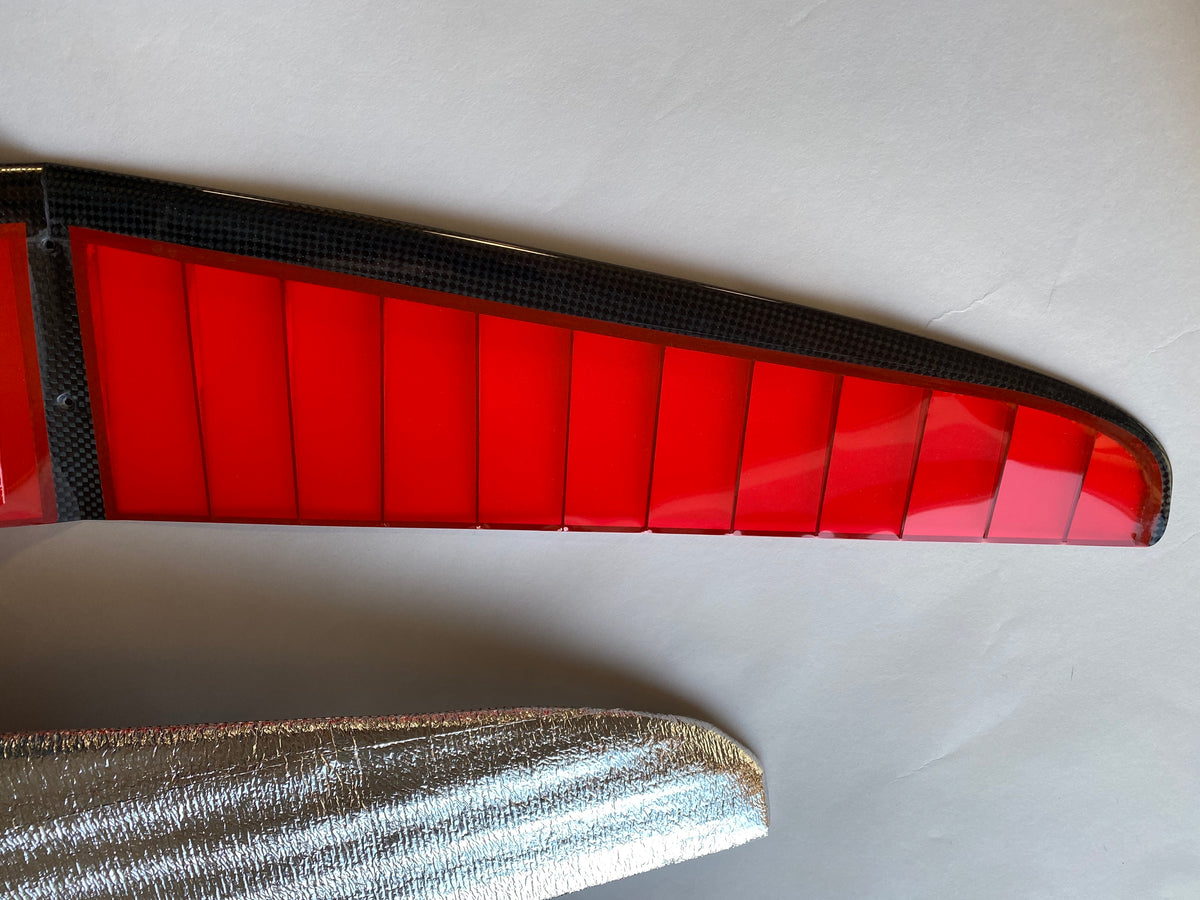

ELF Glider DLG with BAG (Red)

ELF Glider DLG with BAG-RED

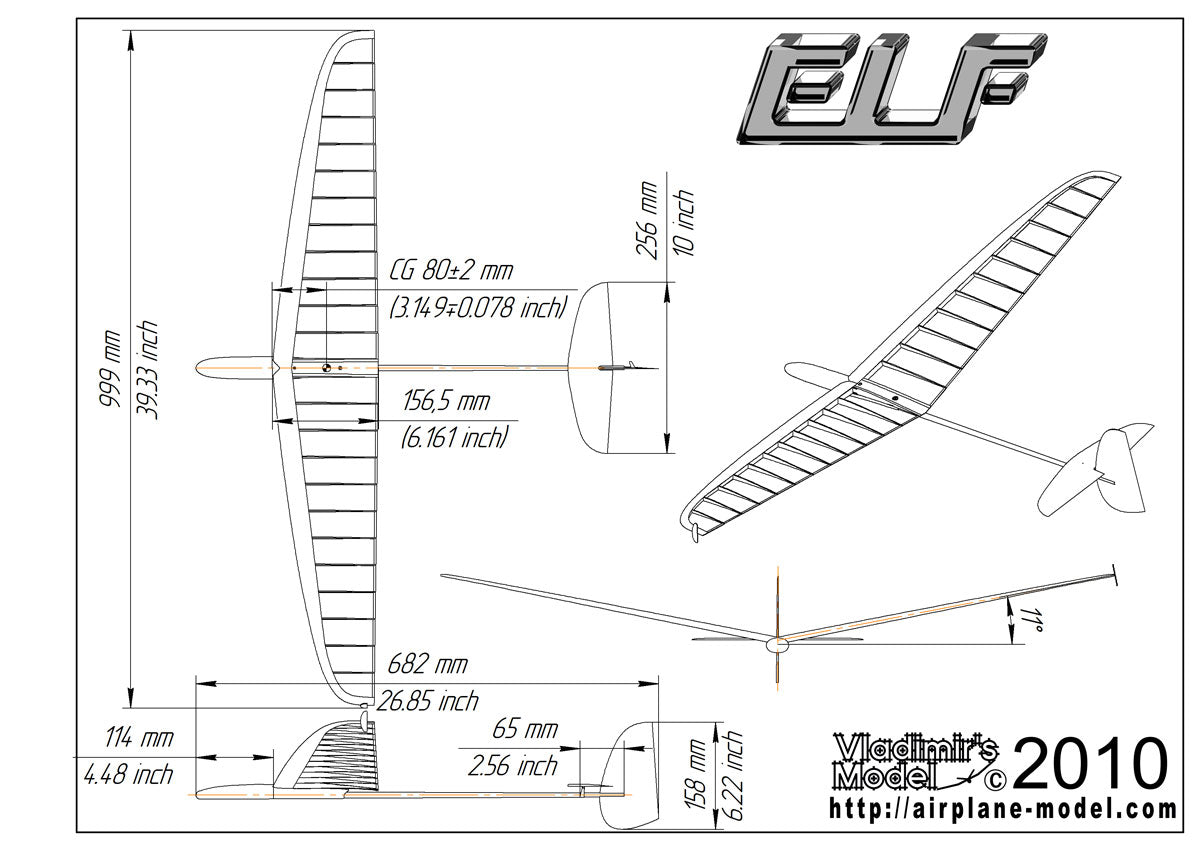

Aerodynamic characteristics

• Wing span 1.0m
• Wing area 11.7 dm²
• Length 682 mm
• Wing air foils  AG12, AG13, AG14
• Wing aspect ratio 8.55%
• Сenter of gravity 2.9-3.3" from the leading edge
• Control surfaces Rudder and elevator

Weight characteristics

• Fuselage 16.5 gr
• Wing 41.0 gr
• Stabilizer 3.3 gr
• Fin 2.8 gr
• Accessories 4.0 gr
• NT model weight 69.6 gr
• Battery Smart LiPo 240 11.4 gr
• Servos 14.0 gr
• Flight weight 95 gr
• Wing loading 8.1gr/dm²

Contents of ELF kit

• 1 Wing;
• 2 Fuselage with the already glued pipes Bowden, pylon, and the V-mount.
• 3 Integrally rotating stabilizer.
• 4 Fin.
• 5 Launch peg (2 piece).
• 6 Servo pushrod adapters (Z).
• 7 Wing mount screws longer – front (2 pieces, 1 - spare).
• 8 Wing mount screws shorter – rear (2 pieces, 1 - spare).
• 9 Rudder control horn.
• 10 Pushrods pipe.

Recommended equipment not included to the kit

1. Servos JR S319  2 pc

2. Receivers

3. RX Batterie

Manual ELF
